Windshield Light Bar, Police light bar, Visor light bar
Windshield Light Bar, Police light bar, and Visor light bar are upgraded LEDs with high-performance, to give you super brightness with lower power consumption than traditional lights. A wide range of uses can apply to different trucks, cars, machines, and outdoor engineering vehicles, Front Interior Visor Dual Color Light Bar is an easy and effective way to light up the front of your vehicle. The Hawks Visor bar housing ensures that the light bar mounts closely to the windshield, preventing any unnecessary flashbacks when driving at night.
Features
- Lasting and serviceable: Windshield light is made of quality LED and aluminum, reliable, not easy to deform and break, and can keep for a long time; The surfaces of these lights are smooth and comfortable to touch and do not need to worry about scratching your fingers
- Super Quality: The windshield light bar has 96PCS high-quality LEDs to output super bright 48LED red/48 LED blue light, improving visibility and ensuring you a safer night.
- Multifunction Match diverse cars: this Windshield light bar is suitable as indicators signals, warning lights, and trailer lamps for many kinds of cars, such as trucks, trailers, horse trailers, travel trailers, boat trailers, RVs
- Absolutely waterproof: The seamless shell and additional waterproof cap guarantee the protection level of IP67, and the service life is about 50,000 hours.
HAWKS Offers the best quality but lower price in the market
Features
Left Stream Flash Patterns:
Total 16 flash Patterns:
Left Stream Slow & Fast
Left Stream + Triple Blink Slow & Fast
Left Stream +All on
All on
Color combo Left Stream
Color combo Left Stream + Triple Blink
Right Stream Flash Patterns:
Total 16 flash Patterns: Right Stream Slow & Fast
Right Stream + Triple Blink Slow & Fast
Right Stream +All on
All on
Color combo Right Stream
Color combo Right Stream + Triple Blink

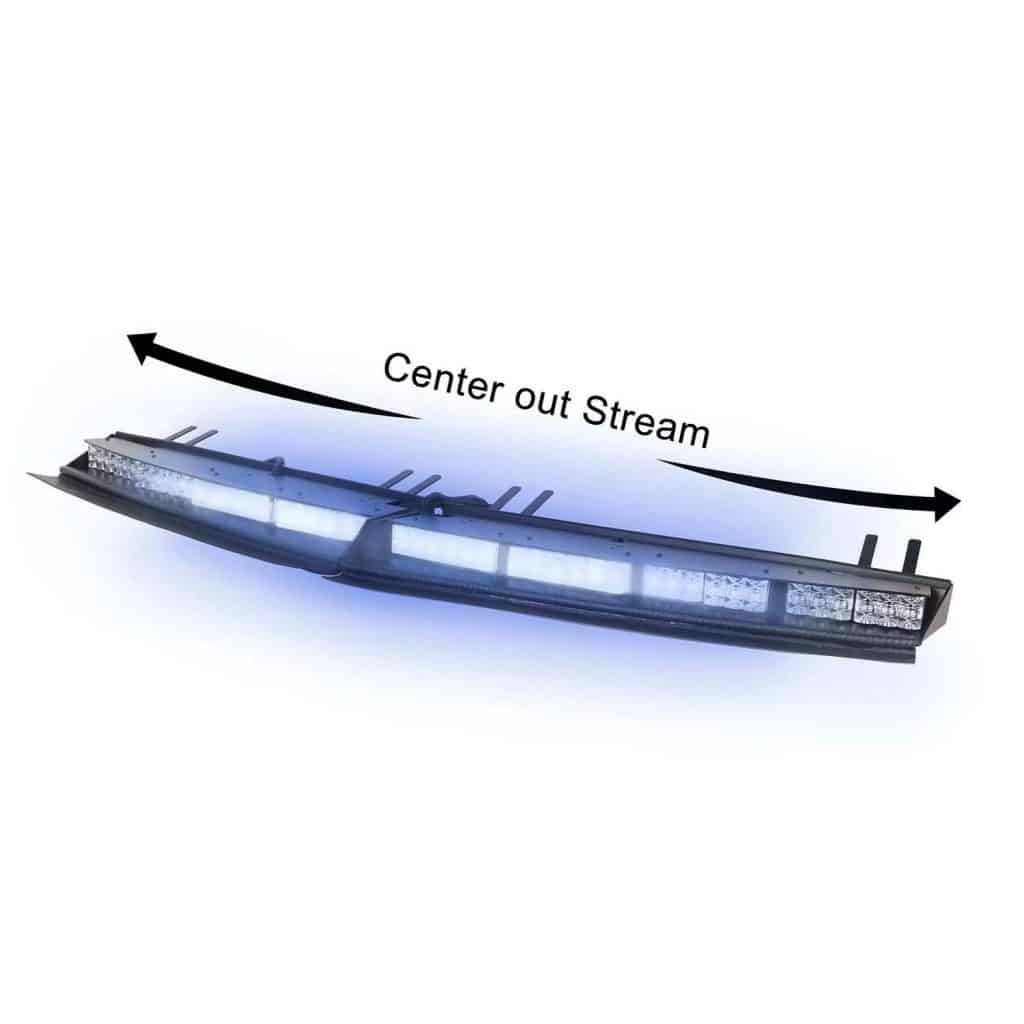

Center Out Stream Flash Patterns:
Total 16 flash Patterns: Center Out Stream Slow & Fast
Center Out Stream + Triple Blink Slow & Fast
Center Out Stream +All om
All on
Color Center Out Stream combo Left Stream
Color Center Out Stream combo Left Stream + Triple Blink
Flash ModelTotal 33 flash patterns: Left Stream
Right Stream
Alternate Blink
Left module Blink + Right module Blink
Como Patterns Combo Blink
Combo Stream
Combo Alternate Blink
Two Two Blink
Combo Patterns Combo Blink
Left to Right Stream
Left 1.3 to 2.4 module Blink + Right 2.4 to 1.3 model Blink
Left 1.2 to 3.4 module Blink + Right 1.2 to 3.4 model Blink
23.24.26.30.28 Patterns Combo Blink

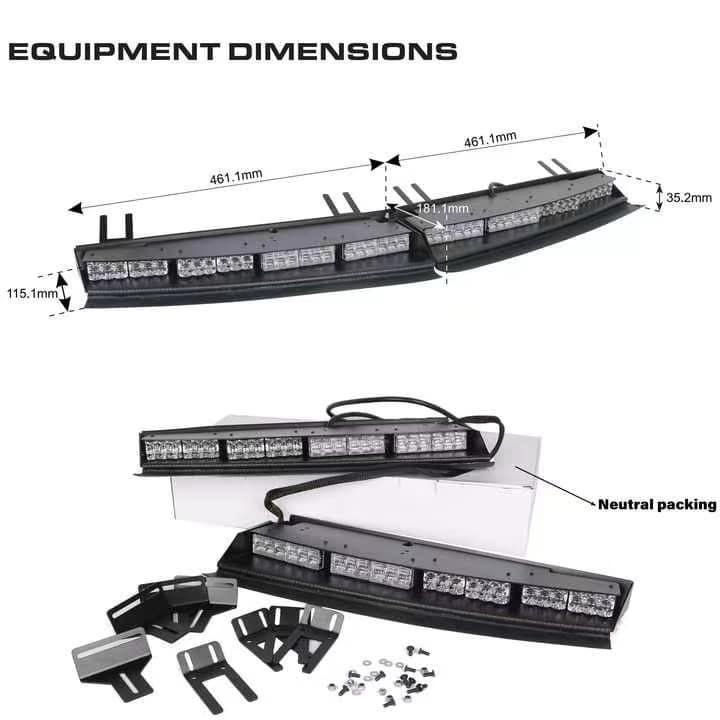

Windshield Light Bar Specification
Visor Bar is our most affordable full-size visor bar that doesn’t sacrifice on functionality. The full-size visor bar features 48 3-Watt LEDs, single or split/alternating color, Total 81 flash patterns, and a universal mounting frame that easily mounts to your visor. High-quality durable and corrosion-resistant aluminum alloy material.The VB01 universal mounting brackets for easy non-permanent mounting that takes only minutes. This all-new version is brighter and more durable.
| Model | HV01 |
|---|---|
| Amps | Red:3.66A/Blue:5.15A |
| Rated Power | Red:48pcs LED*3W/Blue:48pcs LED*3W |
| Input voltage | 9-30V |
| LED lifespan | 100000hours |
| Housing material | Aluminum |
| Dimension(mm) | 46.1*18.1*35.2mm |
Wiring Instructions:
Step 1: In order to power the unit, extend
the red, (+) wire to the (+) post of the vehicle’s battery. Extend the black GND (-) wire to the ground post of the vehicle’s battery.
Step 2: To turn the lightbar on, connect the
brown wire to a (+) source.
Step 3: Momentarily connect the yellow wire
on a (+) source to change flash patterns.
Step 4: For Right arrow function, connect the
blue wire to a (+) post (switch). There are 2 different left arrow flash patterns. To select a pattern, engage the blue wire to a (+) source and momentarily connect the yellow wire on a (+) source to select the desired pattern.
Step 5: For Left arrow function, connect the
gray wire to a (+) post (switch). There are 2 different right arrow flash patterns. To select a pattern, engage the gray wire to a (+) source and momentarily connect the yellow wire on a (+) source to select the desired pattern.
Step 6: In order to achieve a center out directional pattern, connect both the gray and blue wires to a (+) post (switch). There are 2 different center out flash patterns. To select a pattern, engage the blue and gray wires to a (+) source and momentarily connect the yellow wire on a (+) source to select the desired pattern.
Step 7: For takedown steady functionality,
connect the white wire to a (+) post (switch).
What’s Included? * (1) Passenger Side Visor LED Light Bar * (1) Driver Side Visor LED Light Bar
* (2) Upper Protective Rubber
* (2) Lower Protective Rubber
* (2) Left T Bracket
* (2) Right T Bracket
* (3) Visor Bracket
These lights are packed with intelligent features. Unique adjustable brackets make it suitable for vehicles of all sizes, rubber seals between the unit and the windshield reduce vibration and prevent flashback, inconspicuous black circuit boards improve the unit’s camouflage, and multiple color options make these visor lights suitable for all professions across all states.

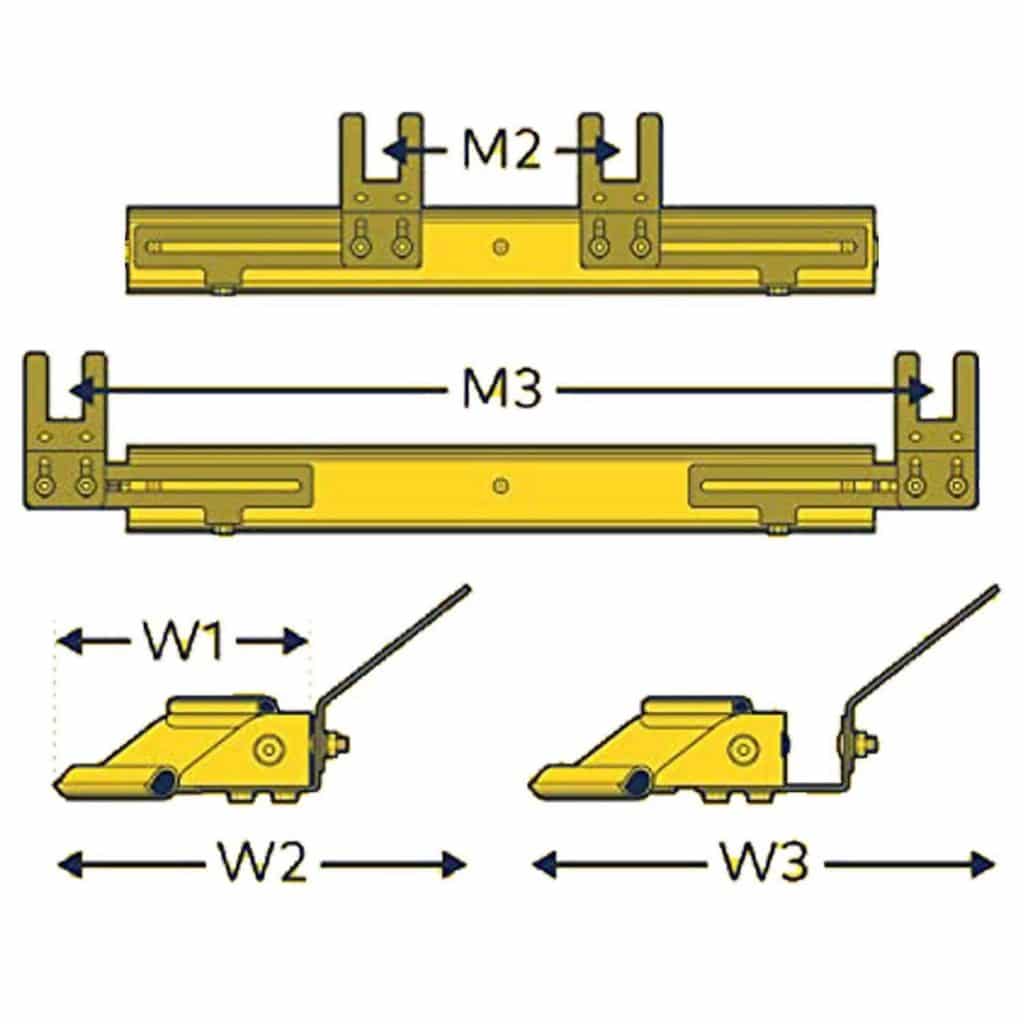

Front Mounting Instructions
Mounting Step 1: Mount the interior light bar to the visor bracket in your vehicle. The front of the base should be flush with the windshield. Step 2 : With the light bar against the headliner and the brackets positioned, reattach the visor clips back into their original position using the original hardware.Step 3: Push the black cable harness through the headliner and proceed with wiring instructions.
Important! : Depending on vehicle year, additional adjustments may be needed during installation, such as bending the visor clip brackets.The vehicle specific brackets for the interior light bars if not fitted correctly, can cause unnecessary flashback.
Advantages:
1: Easy to install
2: Vehicle-grade specialized led chips: can be used in -40℃~105℃ ambient temperature
3: Waterproof IP67, long brightness
4:Built in EMC, anti-electromagnetic interference, no canbus problems
5. Clock design, unique design in the world
6. Super bright LED, Stable steel, not easy to wear, Easy installation
7. With ISO/CE/IP 67/DOT/EMARK Standard Certificates
8. OEM & ODM Services are Available
9. Mature technology maintains high brightness, long lifespan, and low maintenance cost
10. Thicker housing, better heat dissipation
Warranty:
The windshield Light Bar, Police light bar, and Visor light bar are covered by a 24month LED Warranty. Our goal is to make sure you get the right product and you are happy with it. If you have a warranty question or need help with setting up a warranty exchange/return, please contact us directly. We are here to help you. Additionally, any product that is not correct or does not meet your expectations can be returned within 30 days for a full refund. Items returned to us need to be in new condition with the original packaging.
